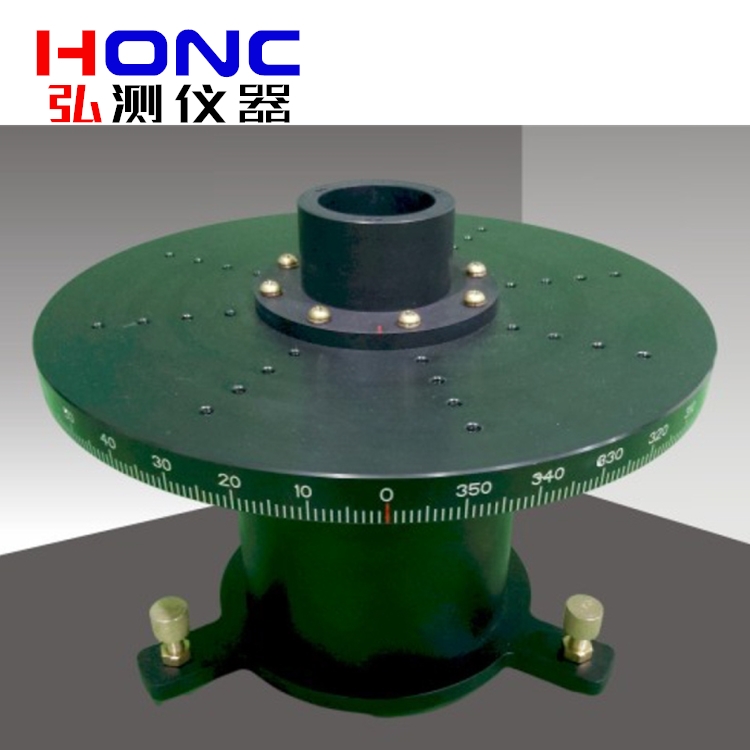

ST-400A型 单轴无磁测试转台【惯性导航测试转台】
产品简介 Product introduction
惯性导航测试转台系统/Inertial Navigation Test Turntable System
惯导测试转台根据需要，有电动和手动两种驱动方式，按结构可分为单轴、双轴和三轴转台等，具有位置、速率、摇摆、跟踪等多种功能，用于各种惯性器件、惯性组合、随动跟踪装置等的地面测试。
The inertial navigation test turntable,according to the needs, has two driving modes: electric and manual. According to the structure, it can be divided into single-axis, dual-axis and three-axis turntables. It has multiple functions such as position, rate, swing and track-ing, and is used for ground testing of various inertial devices, inertial units,follow-up tracking devices, etc.

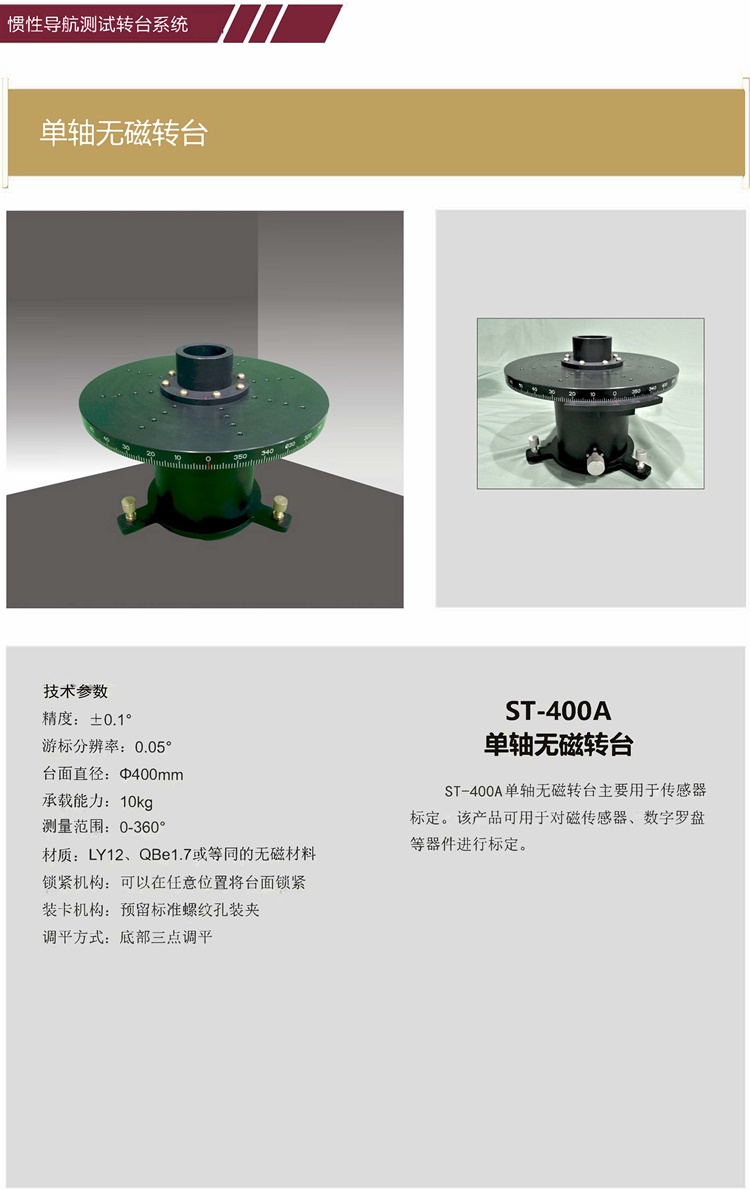

单轴无磁转台主要用于传感器标定。该产品可用于对磁传感器、数字罗盘等器件进行标定。
Single-axis non-magnetic turntable is mainly used for sensor calibration. This product can be used to calibrate magnetic sensors, digital compasses and other devices.

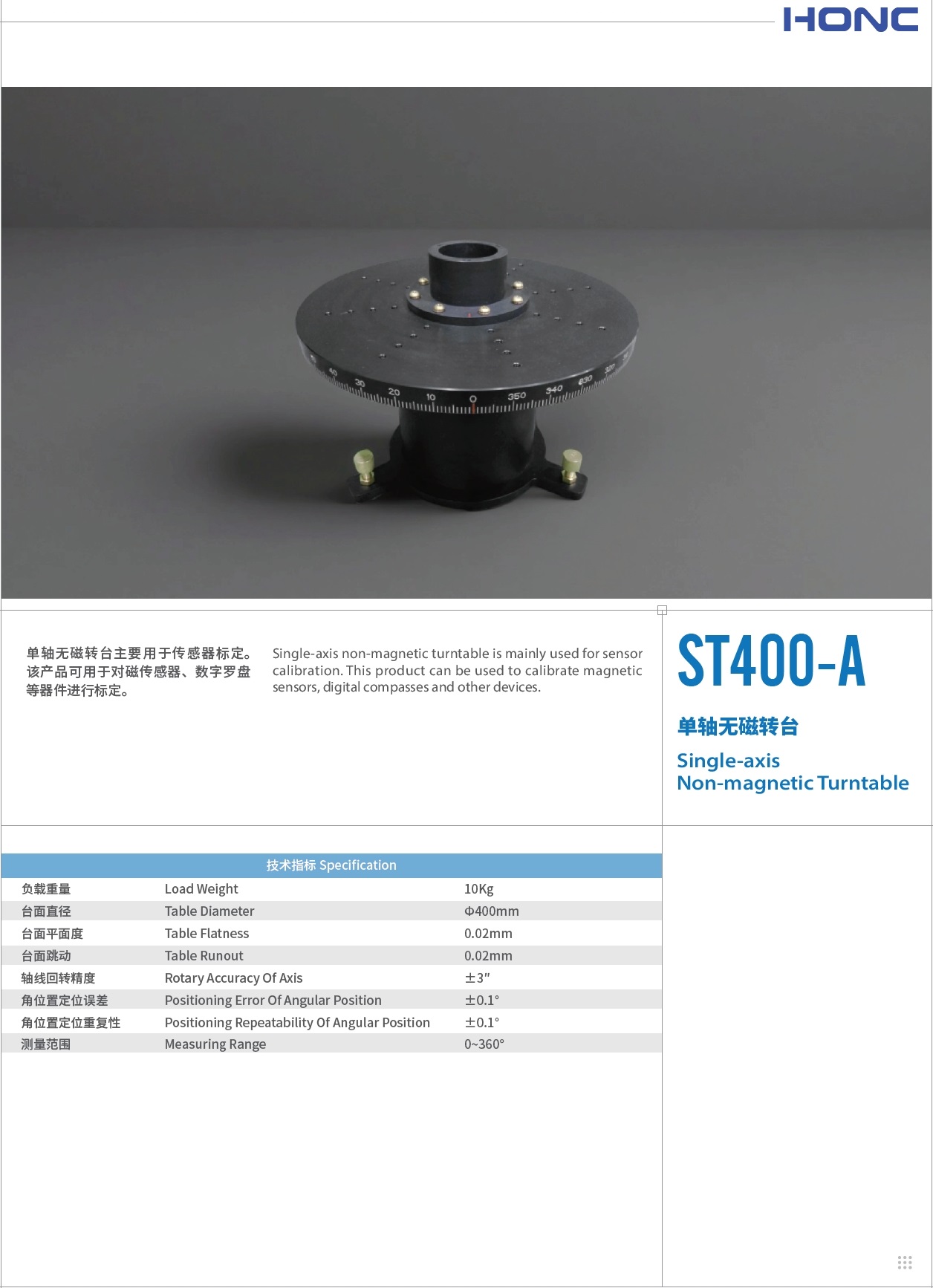

技术指标 Technical indicators
1.负载重量/Load Weight：10Kg；
2.台面直径/Table Diameter：Φ400mm；
3.台面平面度/Table Flatness：0.02mm；
4.台面跳动/Table Runout：0.02mm；
5.轴线回转精度/Rotary Accuracy Of Axis：±3″；
6.精度/角位置定位误差/Positioning Error Of Angular Position：±0.1°；
7.角位置定位重复性/Positioning Repeatability Of Angular Position：±0.1°；
8.游标分辨率/Cursor resolution：0.05°；
9.测量范围/Measuring range：0-360°；
10.材质/Material：LY12、QBe1.7或等同的无磁材料/LY12, QBe1.7 or equivalent non-magnetic material；
11.锁紧机构/Locking mechanism：可以在任意位置将台面锁紧/The tabletop can be locked in any position；
12.装卡机构/Card loading mechanism：预留标准螺纹孔装夹/Reserved standard threaded holes for clamping；
13.调平方式/Leveling method：底部三点调平/Three-point bottom leveling；
