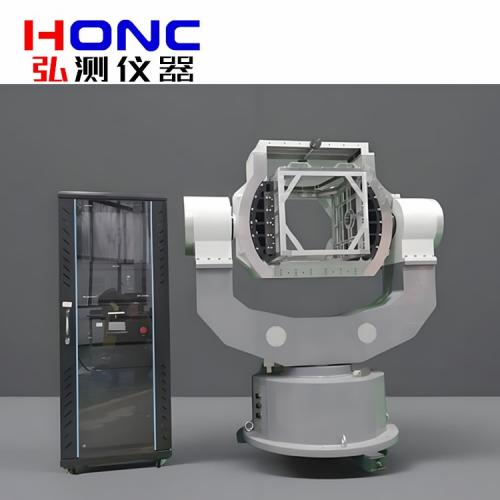

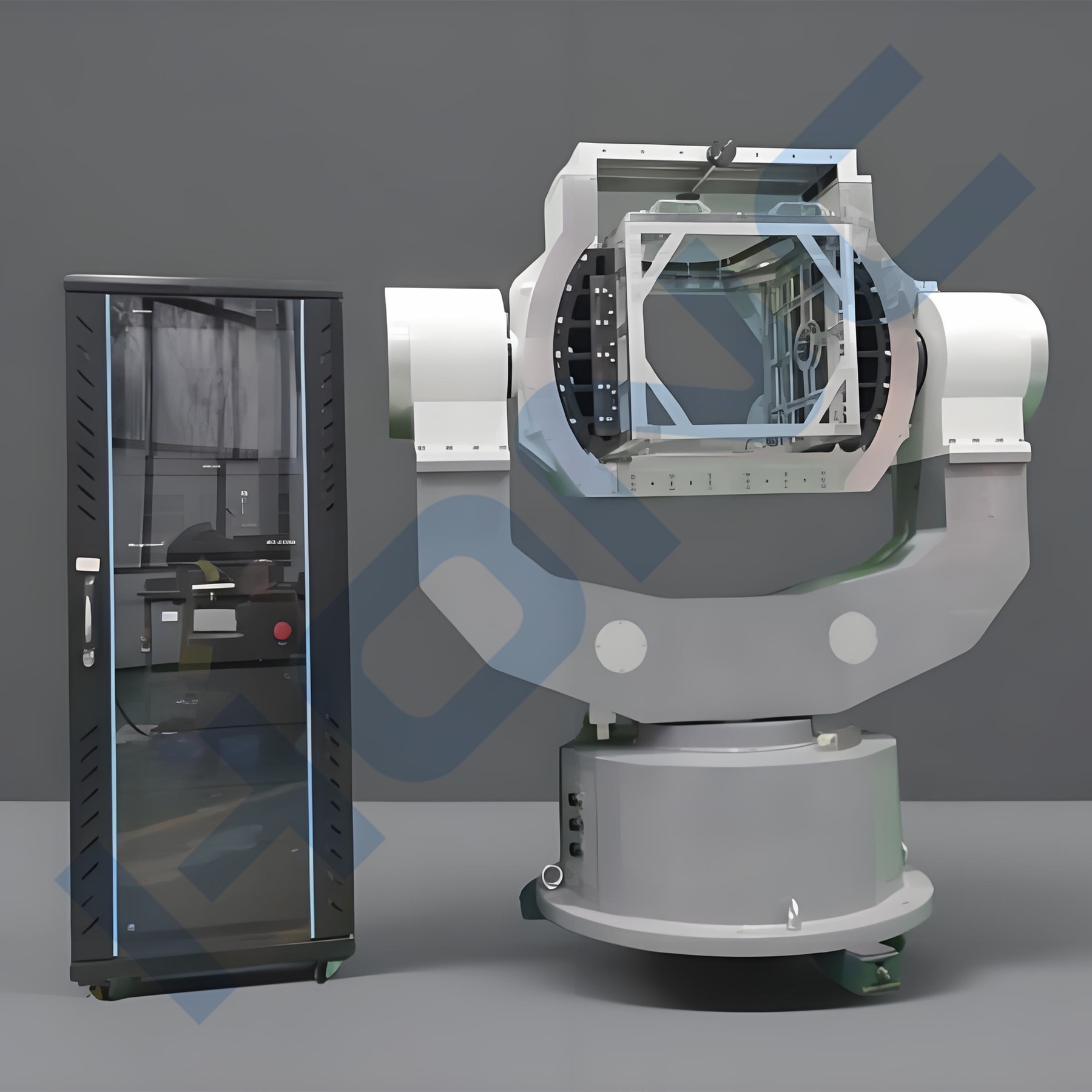

3DT-420型 三轴光电转塔电动测试转台【惯性导航测试转台】
产品简介 Product introduction
惯性导航测试转台系统/Inertial Navigation Test Turntable System
惯导测试转台根据需要，有电动和手动两种驱动方式，按结构可分为单轴、双轴和三轴转台等，具有位置、速率、摇摆、跟踪等多种功能，用于各种惯性器件、惯性组合、随动跟踪装置等的地面测试。
The inertial navigation test turntable,according to the needs, has two driving modes: electric and manual. According to the structure, it can be divided into single-axis, dual-axis and three-axis turntables. It has multiple functions such as position, rate, swing and track-ing, and is used for ground testing of various inertial devices, inertial units,follow-up tracking devices, etc.
三轴电动转台是一种能够实现三个独立轴（通常为俯仰、滚转和偏航）旋转的设备，广泛应用于航空航天、军事、科研、工业自动化等领域。
The three-axis electric turntable is a device thatcanrotate onthreeindepen-dent axes (usually pitch, roll and yaw). It is widely used in aerospace, military,scientifc research, industrial automation and other fields.
某两轴光电转塔设备需要进行线下标定测试，需要配置一套三轴测试转台系统，要求三轴测试转台的转动范围和位置精度均要优于转塔的运动范围和稳定精度。
A two-axis photoelectric tower equipment requires offine calibration testing, and a three-axis test turntable system needs to be confgured. The rotation range and position accuracy of the three-axis test turntable are required to be better than the motion range and stability accuracy of the tower.
由于转塔只有方位和俯仰两个自由度，因此对三轴转台的滚转轴不做精度和动态指标要求，只要求该轴系具有旋转功能即可。
Since the tower has only two degrees of freedom, azimuth and pitch, there are no accuracy and dynamic index require-ments for the roll axis of the three-axis turntable. It is only required that the axis system has a rotation function.

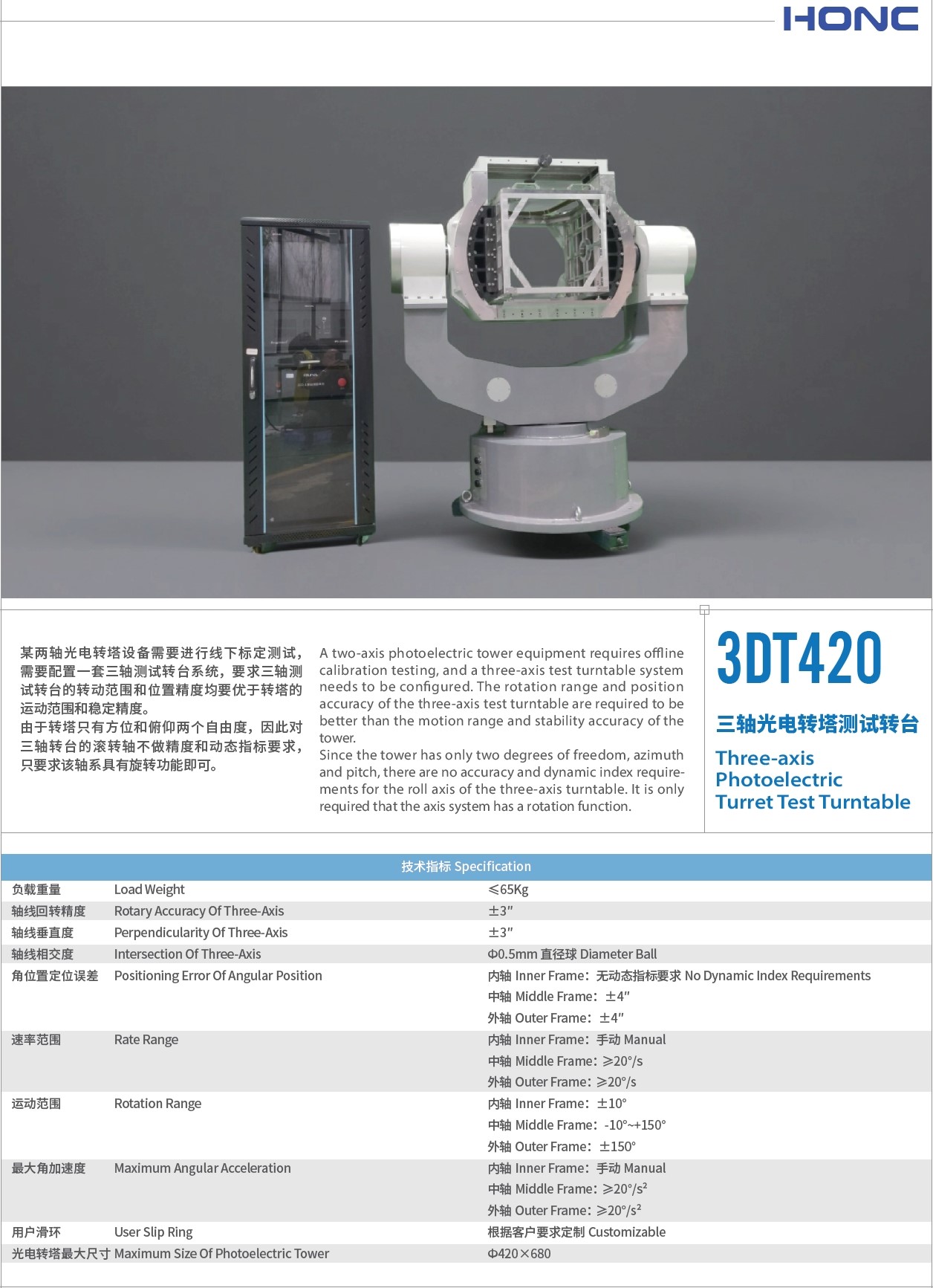

技术指标 Technical indicators
1.负载重量/Load Weight：≤65Kg；
2.轴线回转精度/Rotary Accuracy Of Three-Axis： ±3"；
3.轴线垂直度/Perpendicularity Of Three-Axis：±3"；
4.轴线相交度/Intersection Of Three-Axis：Φ0.5mm 直径球 Diameter Ball；
5.角位置定位误差/ Positioning Error Of Angular Position：
内轴/ Inner Frame：无动态指标要求/ No Dynamic Index Requirements；
中轴/ Middle Frame：±4"；
外轴/ Outer Frame：±4"；
6.速率范围/Rate Range：
内轴/ Inner Frame：手动Manual；
中轴/ Middle Frame：≥20°/s；
外轴/ Outer Frame：≥20°/s；
7.运动范围/Rotation Range：
内轴/ Inner Frame：±10°；
中轴/ Middle Frame：-10°~+150°；
外轴/ Outer Frame：±150°；
8.最大角加速度/ Maximum Angular Acceleration：
内轴/ Inner Frame：手动 Manual；
中轴/ Middle Frame：≥20°/s2；
外轴/ Outer Frame：≥20°/s2；
9.用户滑环/User Slip Ring：根据客户要求定制/Customizable；
10.光电转塔最大尺寸/ Maximum Size Of Photoelectric Tower：Φ420×680mm；
