2STGZ-1型 L型中载荷直驱二维跟踪转台【卫星跟踪转台系统】

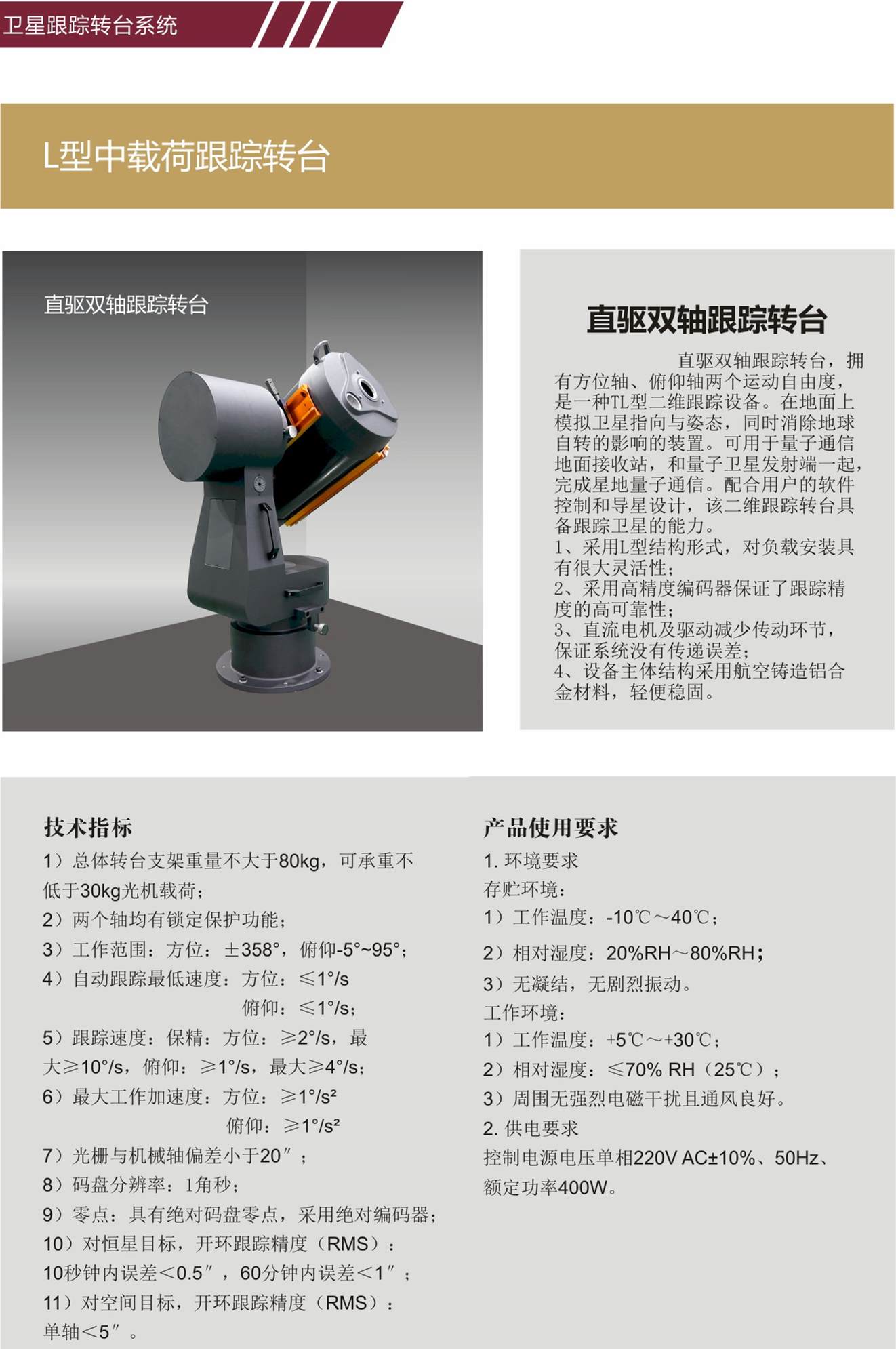

产品简介 Product introduction
卫星跟踪转台系统/Satellite Tracking Turntable System
卫星跟踪转台系统，是一套在地面上模拟卫星指向与姿态，同时消除地球自转的影响的装置。可用于量子通信地面接收站，和量子卫星发射端一起，完成星地量子通信。配合客户的软件控制和导星设计，转台具备跟踪低轨卫星的能力。
The satellite tracking turntable system is a set of devices that simulate the pointing and posture of satellites on the ground, while eliminating the influence of the earth's rotation. It can be used for quantum communication ground receiving station, and together with the quantum satellite transmitter, it can complete satellite-to-ground quantum communication. With the customer's software control and guide star design, the turntable has the ability to track low-orbit satellites.
直驱双轴跟踪转台/Direct Drive Dual-axis Tracking Turntable

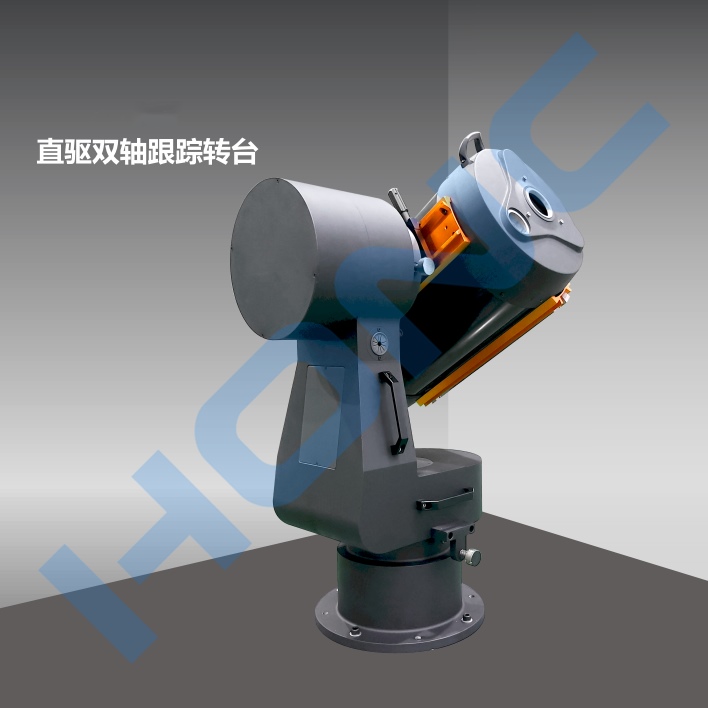

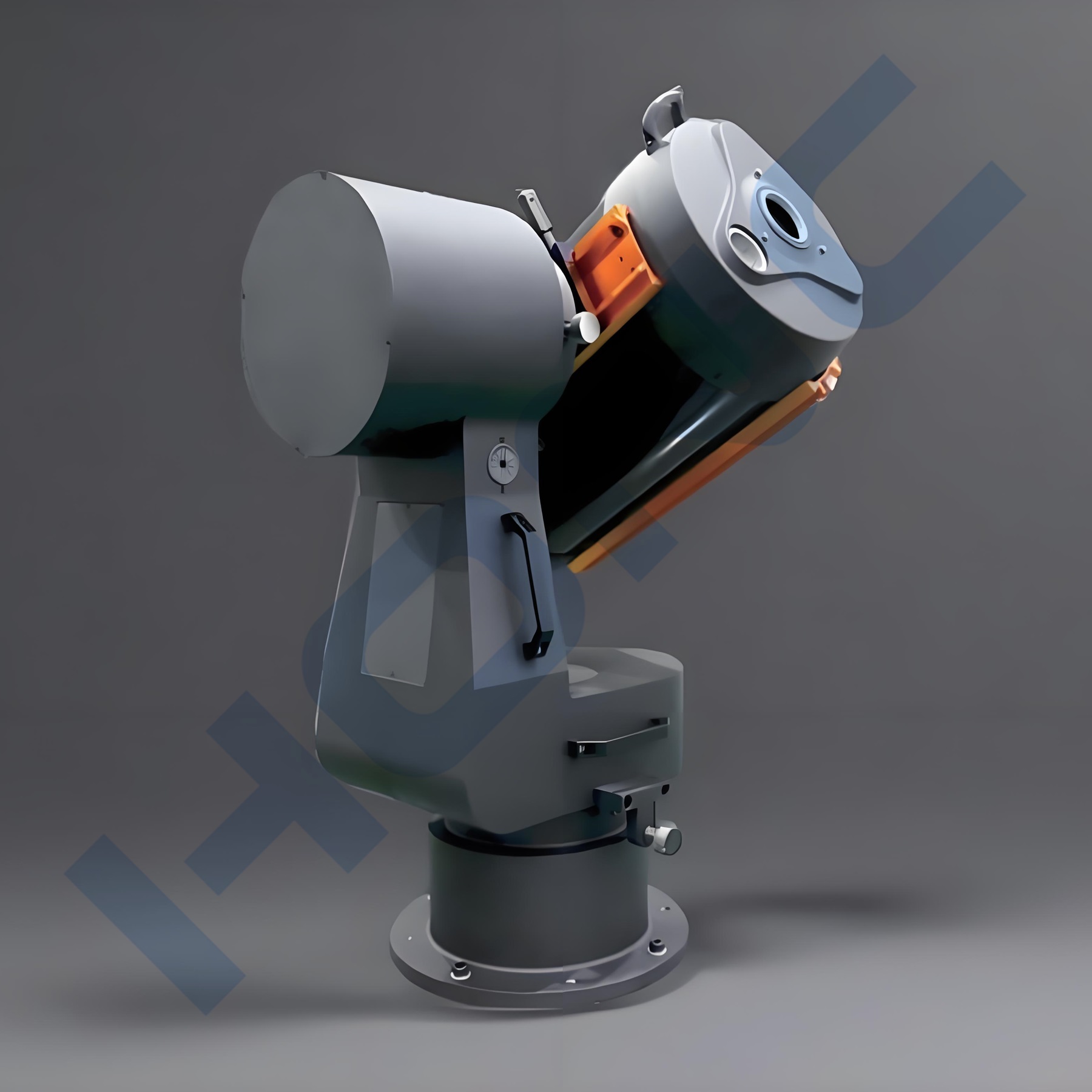

直驱双轴跟踪转台，拥有方位轴、俯仰轴两个运动自由度，是一种TL型二维跟踪设备。在地面上模拟卫星指向与姿态，同时消除地球自转的影响的装置。可用于量子通信地面接收站，和量子卫星发射端一起，完成星地量子通信。配合用户的软件控制和导星设计，该二维跟踪转台具备跟踪卫星的能力。
The direct drive dual-axis tracking turntable has two degrees of free dom of movement in the azimuth axis and pitch axis. It is a TL type two-dimensional tracking equipment,which can simulate satellite pointing and attitude on the ground while eliminating the influence of the earth's rotation. It can be used as a quantum communication ground receiving station, and together with the quantum satellite transmitter, complete satellite-to-ground quantum communication. And cooperating with the user's software control and guide design, the two-dimensional tracking turntable has the ability to track satellites.

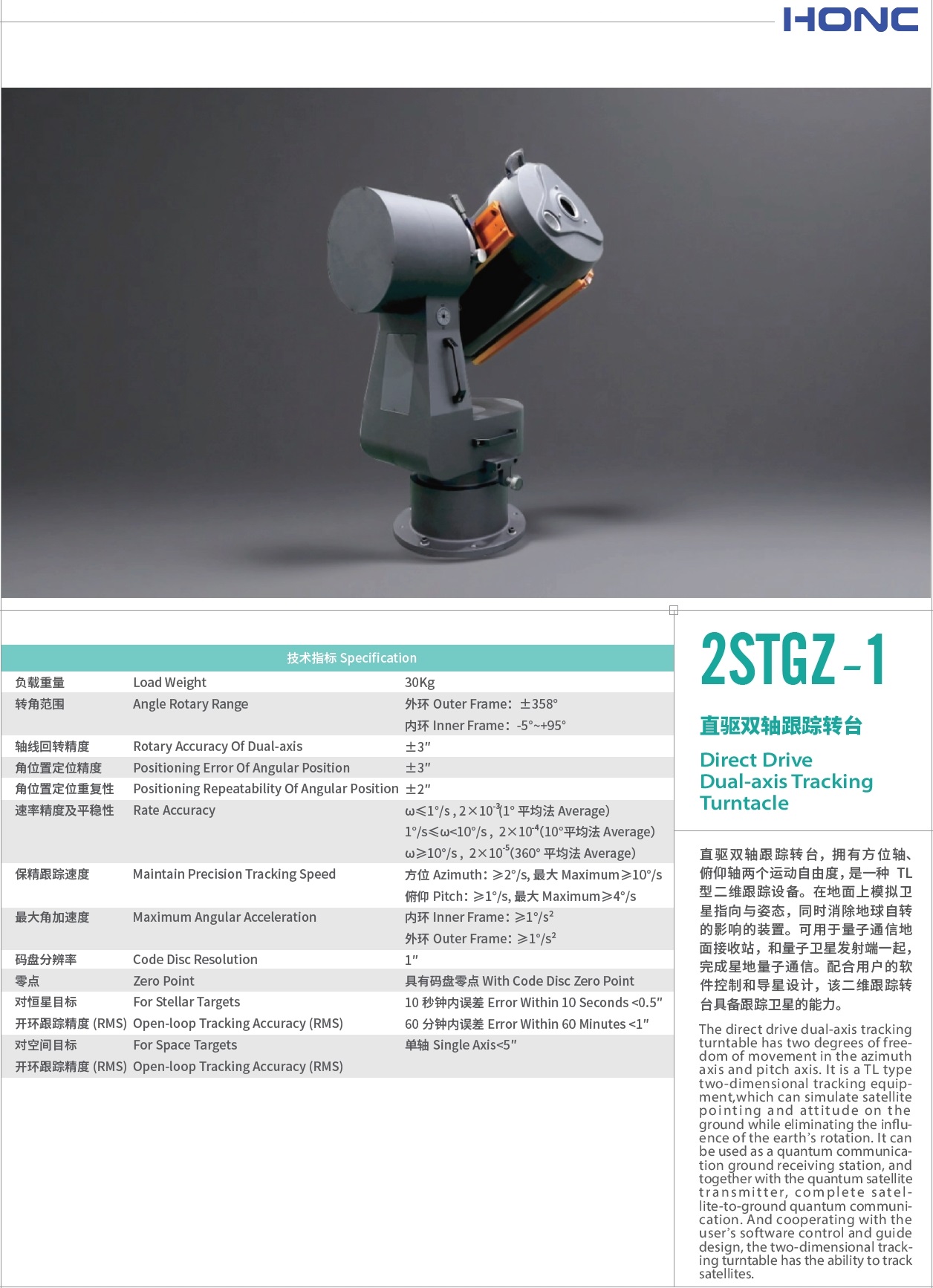

技术指标 Technical indicators
1.负载重量/Load Weight：30Kg；
2.转角范围/Angle Rotary Range：
外环/ OuterFrame：±358°；
内环/ InnerFrame：-5°~+95°；
3.轴线回转精度/Rotary Accuracy Of Dual-axis：±3"；
4.角位置定位精度/Positioning Error Of Angular Position：±3"；
5.角位置定位重复性/Positioning Repeatability Of Angular Position：±2"；
6.速率精度及平稳性/ Rate Accuracy：
ω≤1°/s，2×10-3(1° 平均法 Average)；
1°/s≤ω<10°/s，2×10-4(10°平均法 Average)；
ω≥10°/s，2×10-5(360° 平均法 Average)；
7.保精跟踪速度/Maintain Precision Tracking Speed：
方位/ Azimuth：≥2°/s，最大/Maximum≥10°/s；
俯仰/ Pitch：≥1°/s，最大/Maximum≥4°/s；
8.最大角加速度/Maximum Angular Acceleration：
内环/ Inner Frame：≥1°/s2；
外环/ Outer Frame：≥1°/s2；
9.码盘分辨率/Code Disc Resolution：1"；
10.零点/Zero Point：具有码盘零点/WithCodeDiscZeroPoint；
11.对恒星目标/For Stellar Targets；开环跟踪精度(RMS）/Open-loopTrackingAccuracy(RMS)：
10秒钟内误差ErrorWithin10 Seconds：<0.5"；
60分钟内误差ErrorWithin60Minutes：<1"；
12.对空间目标/For Space Targets；开环跟踪精度 (RMS) /Open-loop Tracking Accuracy (RMS)：
单轴 Single Axis：<5"；
13.总体转台支架重量不大于80kg，可承重不低于30kg光机载荷；
14.两个轴均有锁定保护功能；
