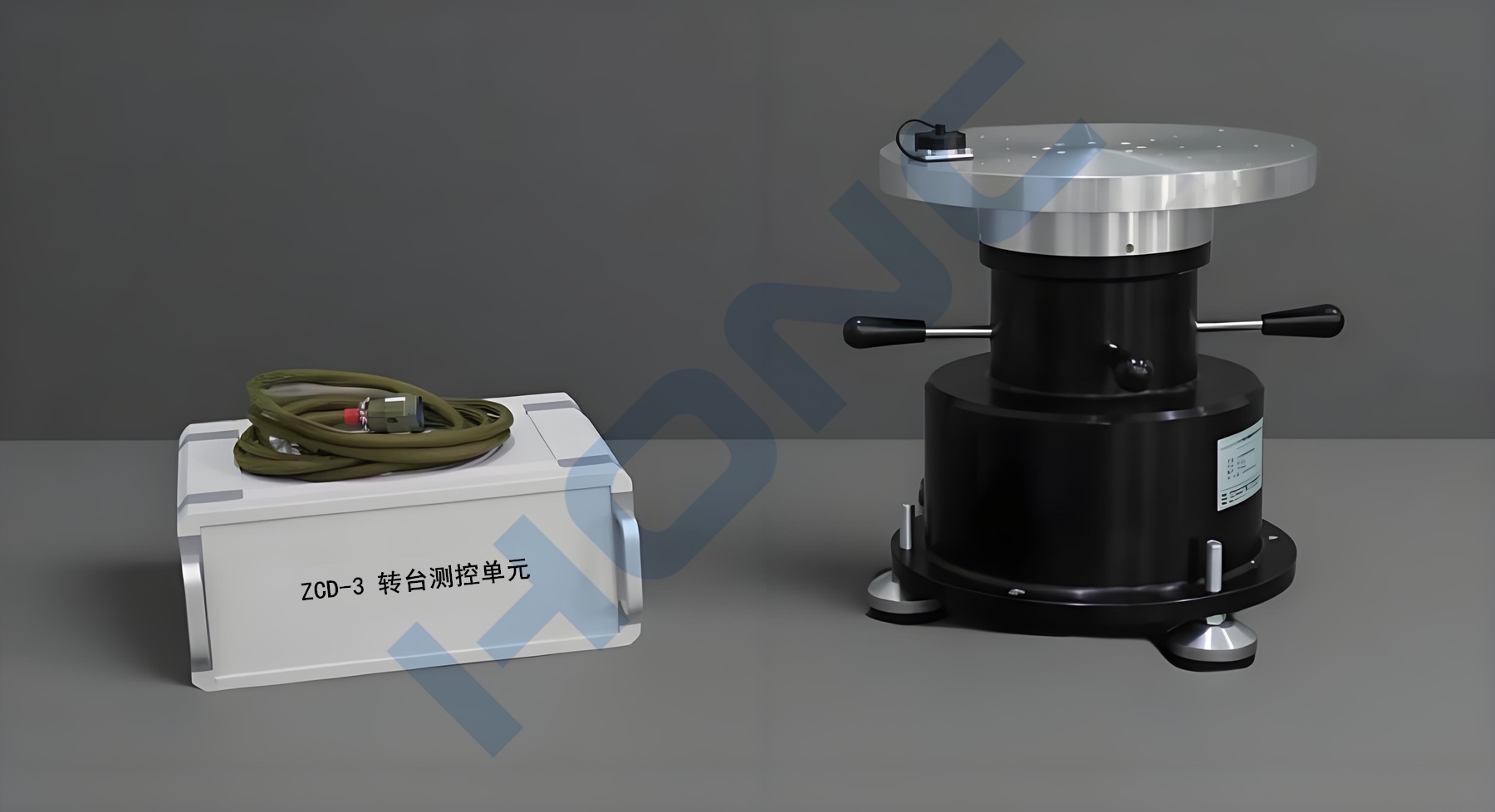

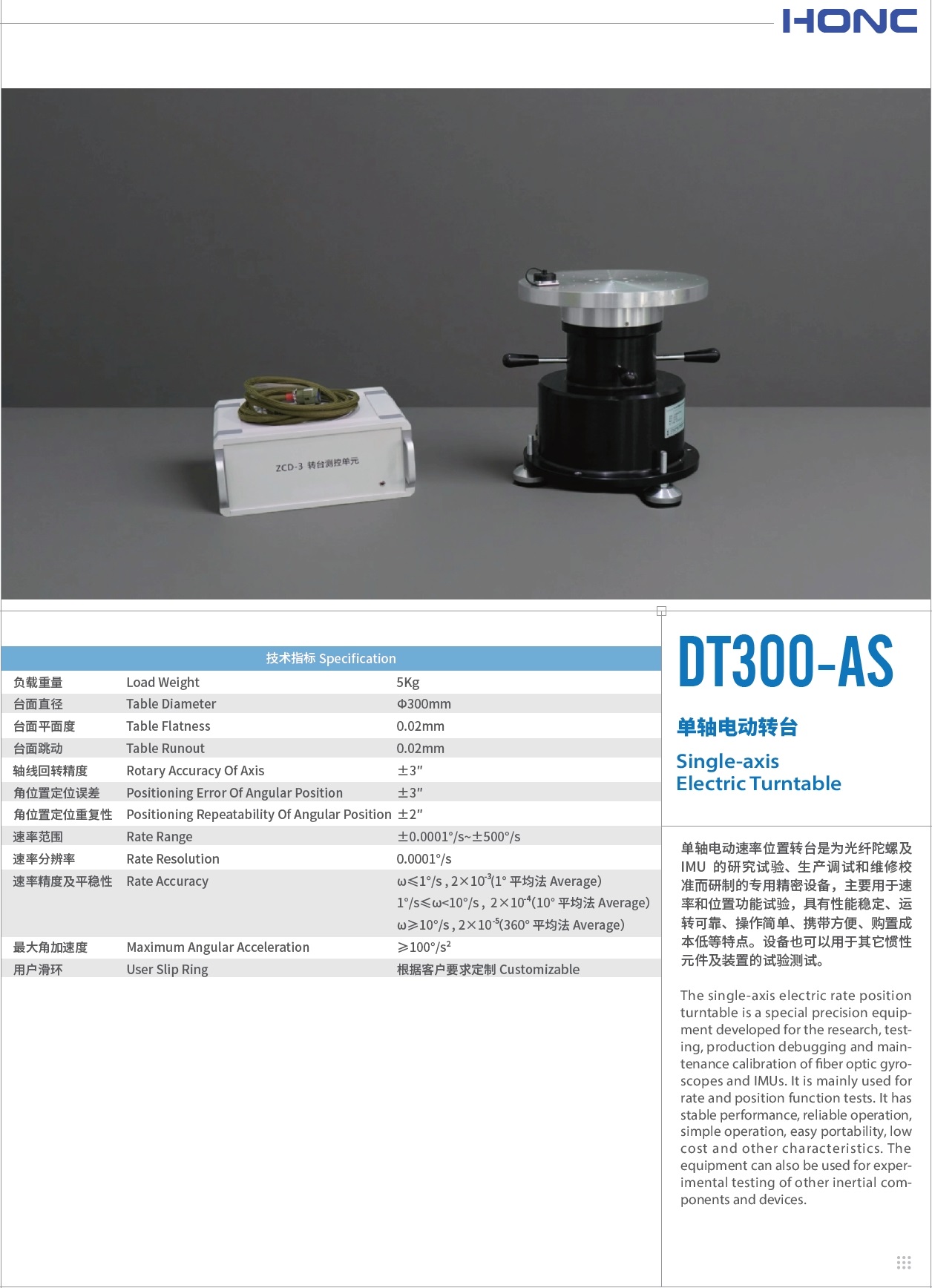

DT-300AS型 小型单轴电动速率位置转台【惯性导航测试转台】
产品简介 Product introduction
惯性导航测试转台系统/Inertial Navigation Test Turntable System
惯导测试转台根据需要，有电动和手动两种驱动方式，按结构可分为单轴、双轴和三轴转台等，具有位置、速率、摇摆、跟踪等多种功能，用于各种惯性器件、惯性组合、随动跟踪装置等的地面测试。
The inertial navigation test turntable,according to the needs, has two driving modes: electric and manual. According to the structure, it can be divided into single-axis, dual-axis and three-axis turntables. It has multiple functions such as position, rate, swing and track-ing, and is used for ground testing of various inertial devices, inertial units,follow-up tracking devices, etc.
单轴电动速率位置转台是为光纤陀螺及IMU的研究试验、生产调试和维修校准而研制的专用精密设备，主要用于速率和位置功能试验，具有性能稳定、运转可靠、操作简单、携带方便、购置成本低等特点。设备也可以用于其它惯性元件及装置的试验测试。
The single-axis electric rate positionturntable is a special precision equipment developed for the research, testing, production debugging and maintenance calibration of fiber optic gyroscopes and IMUs. It is mainly used for rate and position function tests. It has stable performance, reliable operation, simple operation, easy portability, low cost and other characteristics. The equipment can also be used for experimental testing of other inertial components and devices.
技术指标 Technical indicators
1. 台体重量：约28Kg；
2. 负载重量/Load Weight：5Kg；
3. 台面直径/Table Diameter：Ф300mm；
4. 台面平面度/Table Flatness：0.02mm；
5. 台面跳动/Table Runout：0.02mm；
6. 转角范围/Corner range：360°连续无限/360° continuous and unlimited；
7. 速率分辨率/Rate Resolution：0.0001°/s；
8.轴线回转精度/Rotary Accuracy Of Axis：±3″；
9.角位置定位误差/Positioning Error Of Angular Position：±3″；
10.角位置定位重复性/Positioning Repeatability Of Angular Position：±2″；
11. 速率精度及平稳性/Rate Accuracy；
ω≤1°/s，2×10-3 (1°平均法）；
1°/s≤ω<10°/s，2×10-4 （10°平均法）；
ω≥10°/s，2×10-5 （360°平均法）。
12.速率范围/Rate Range：±0.0001°/s～±500°/s；
13.最大角加速度/Maximum Angular Acceleration：≥100°/s²；
14.用户滑环/User Slip Ring：根据客户要求定制/Customizable；
